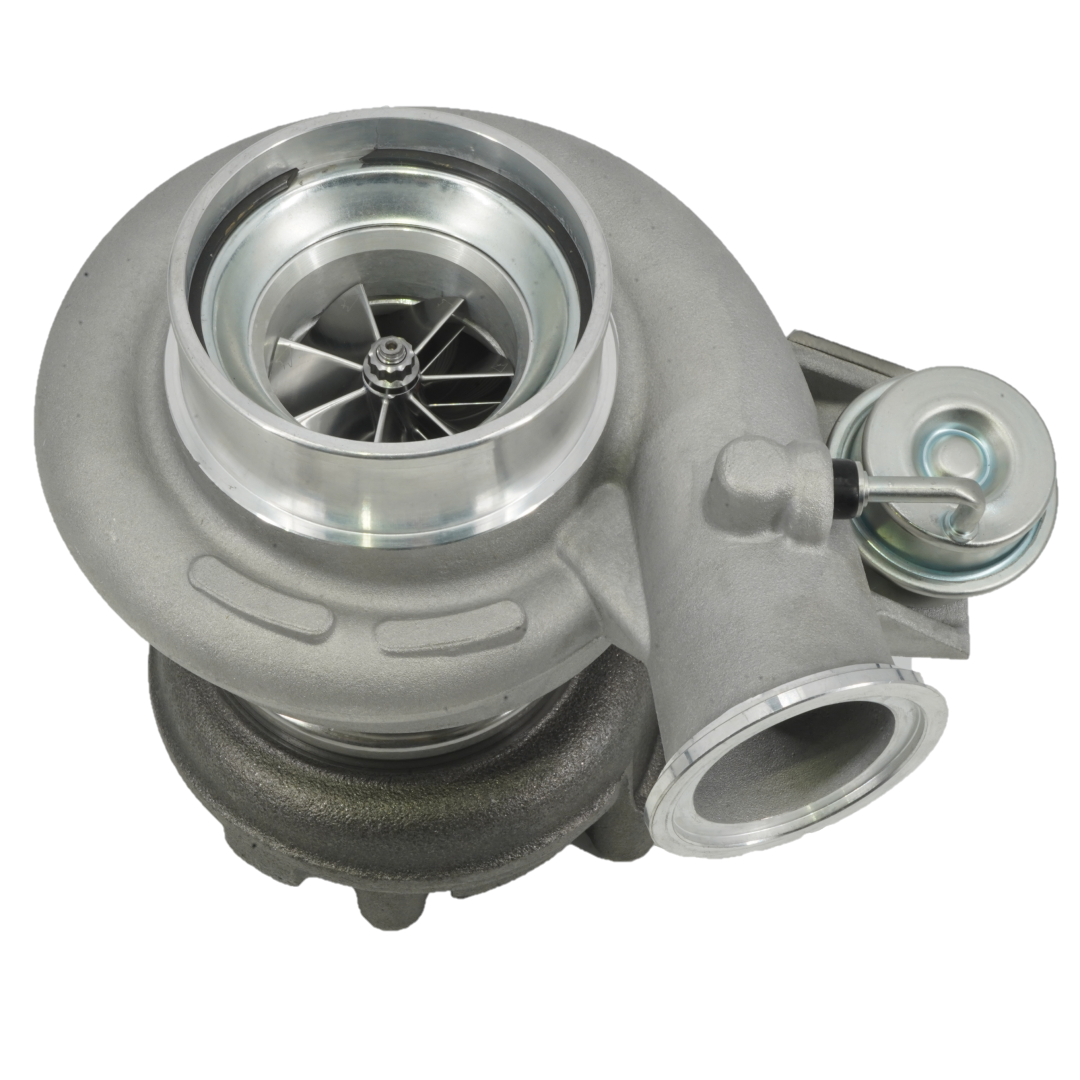

1991.5-2002 5.9L Cummins Stealth STR 60mm Drop In Turbo

SKU: CPS200125

- 500+ RWHP Peak
- 60mm - 7+7 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel
- 62.5mm - 10 Blade 713C - Nickel Alloy Turbine Wheel
- 360-degree Thrust Bearing
- Grooved journal bearings for improved oil retention and cooling
- Quick Spool-Up
- Wide Torque Curve
- Direct Bolt-On
- 9cm Exhaust Housing
- 12-month Warranty
- Supersedes DT1201000020000

Availability: Ships in 3-5 business days. 10-15 business day lead time for powder and ceramic coat options.

Was: $1,449.00

Sale: $1,304.10

Save: 10%

Save: $144.90

Customize Your Item

Powder Coating

- Powder Coating -

* required

5.9L Turbo Install Hardware Kit

94-02 Turbo Install Kit

- 94-02 Turbo Install Kit -

* required

Upgraded Oil Feed Line Kit

91-18 Turbo Oil Feed Line Kit

- 91-18 Turbo Oil Feed Line Kit -

* required

Upgraded Oil Drain Line Kit

94-02 5.9L Turbo Oil Drain Kit

- 94-02 5.9L Turbo Oil Drain Kit -

* required

VGT Exhaust Housing Finish

- VGT Exhaust Housing Finish -

* required

Qty:

Description
Details
Shipping
Reviews

Description

The Stealth 60 is an upgraded, drop-in turbo for your 1991.5-2002, 5.9L Cummins. Capable of up to 500 RWHP (with proper supporting modifications).

With impressively quick spool-up, this is a great turbo for daily driving and towing. If you're looking to make up to 500 RWHP with your 1991.5, 1992, 1993, 1994, 1995, 1996, 1998, 1998.5, 1999, 2000, 2001, 2002 Cummins 5.9L, the HY35 Stealth 60 is up to the task. This turbo works perfectly with stock, or near-stock injectors and high-pressure fuel pumps. It can even be installed with the stock transmission/clutch.

The HY35 Stealth 60 is an upgraded, drop-in, replacement turbo for the 12v and early 24v, 5.9L Cummins. The turbo features a custom profile, 7-blade, billet wheel perfectly mapped to a modified compressor cover, and custom high-flow turbine inside of a tight 9cm housing.

500+ RWHP Peak
60mm - 7+7 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel
62.5mm - 10 Blade 713C - Nickel Alloy Turbine Wheel
360-degree Thrust Bearing
Grooved journal bearings for improved oil retention and cooling
Quick Spool-Up
Wide Torque Curve
Direct Bolt-On
9cm Exhaust Housing
12-month Warranty

Includes:

- HY35 Stealth 60 Towing Turbo
- 1991.5-1993 (3") V-Band Downpipe Adapter
- 1994-2002 Down Pipe Adapter

Supersedes DT1201000020000
