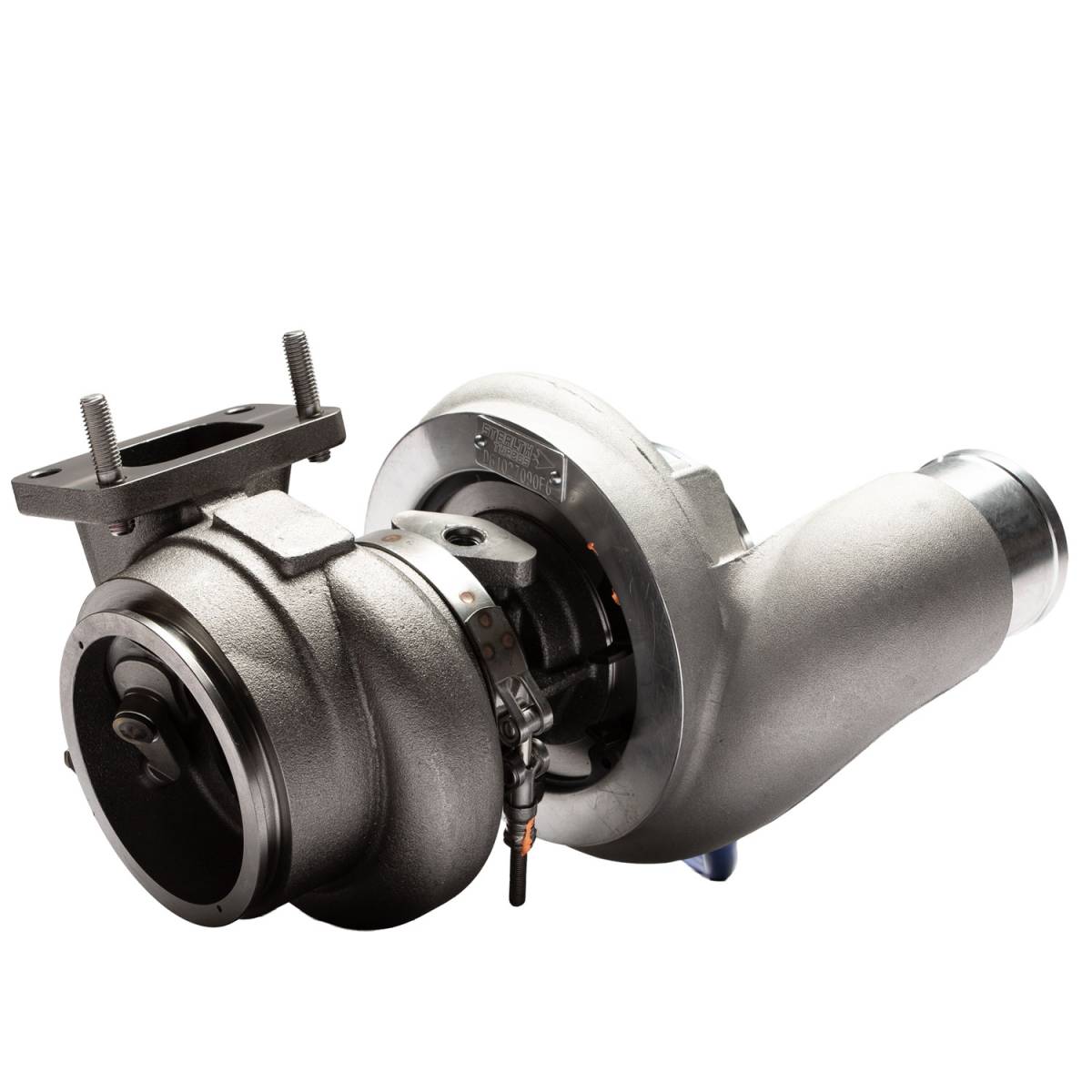

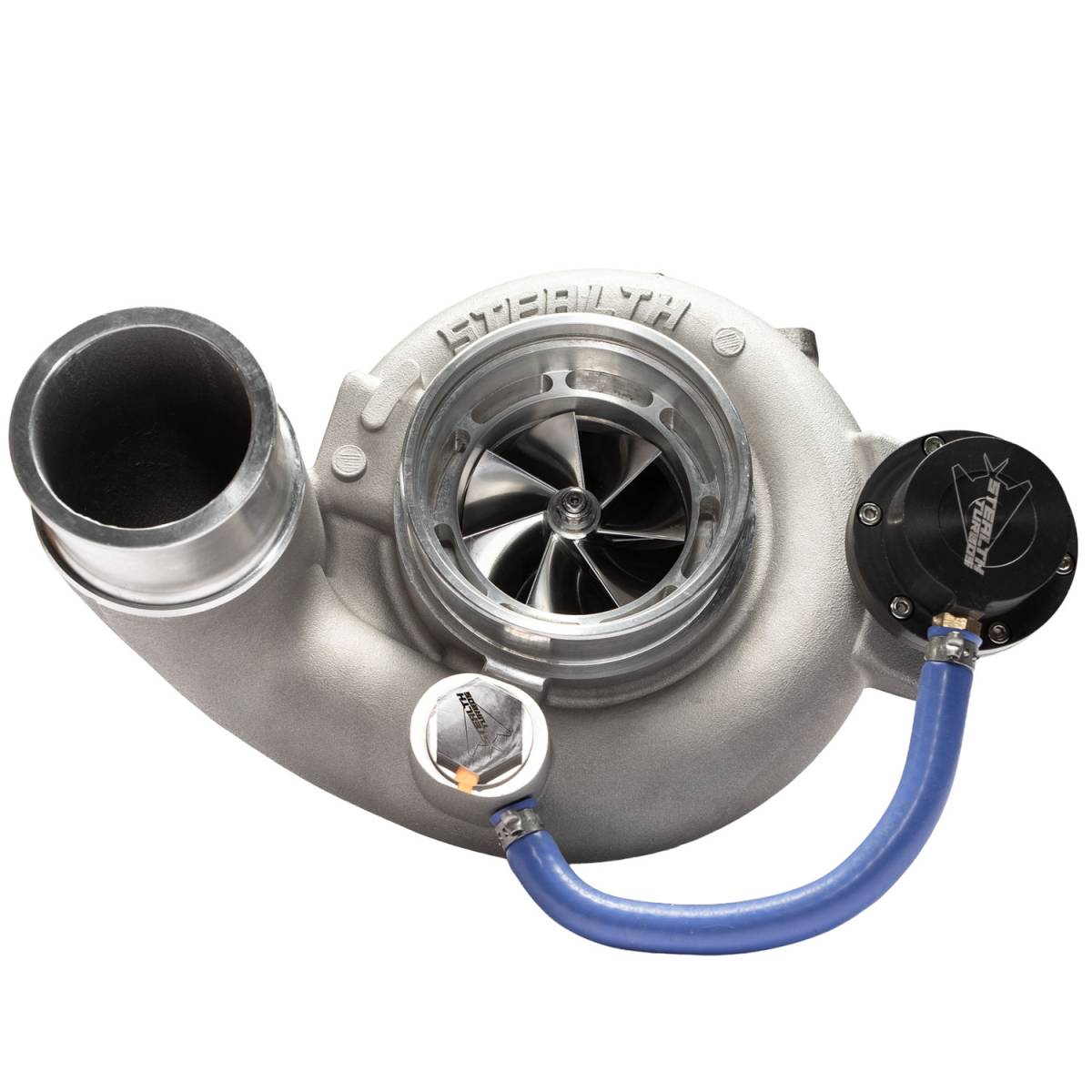

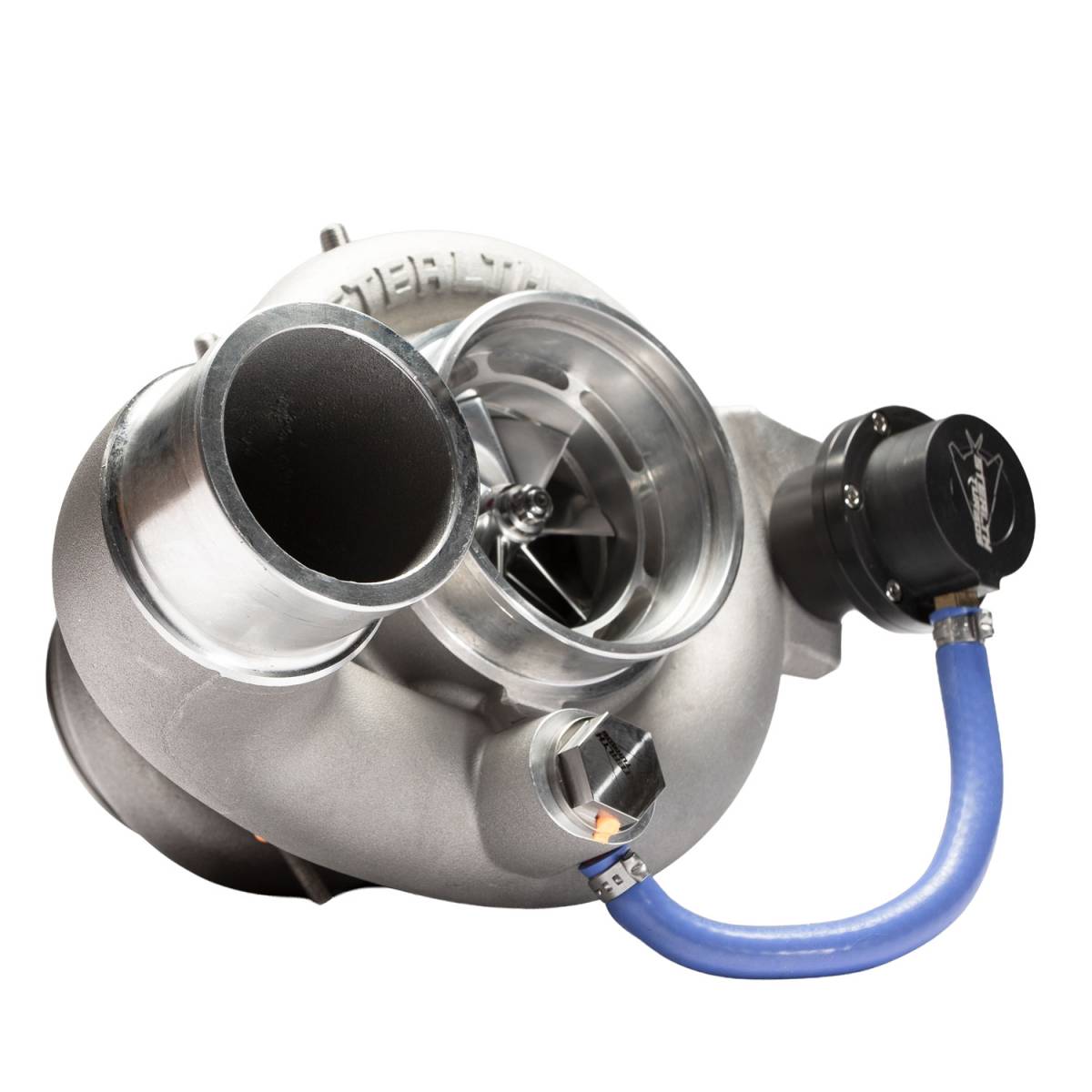

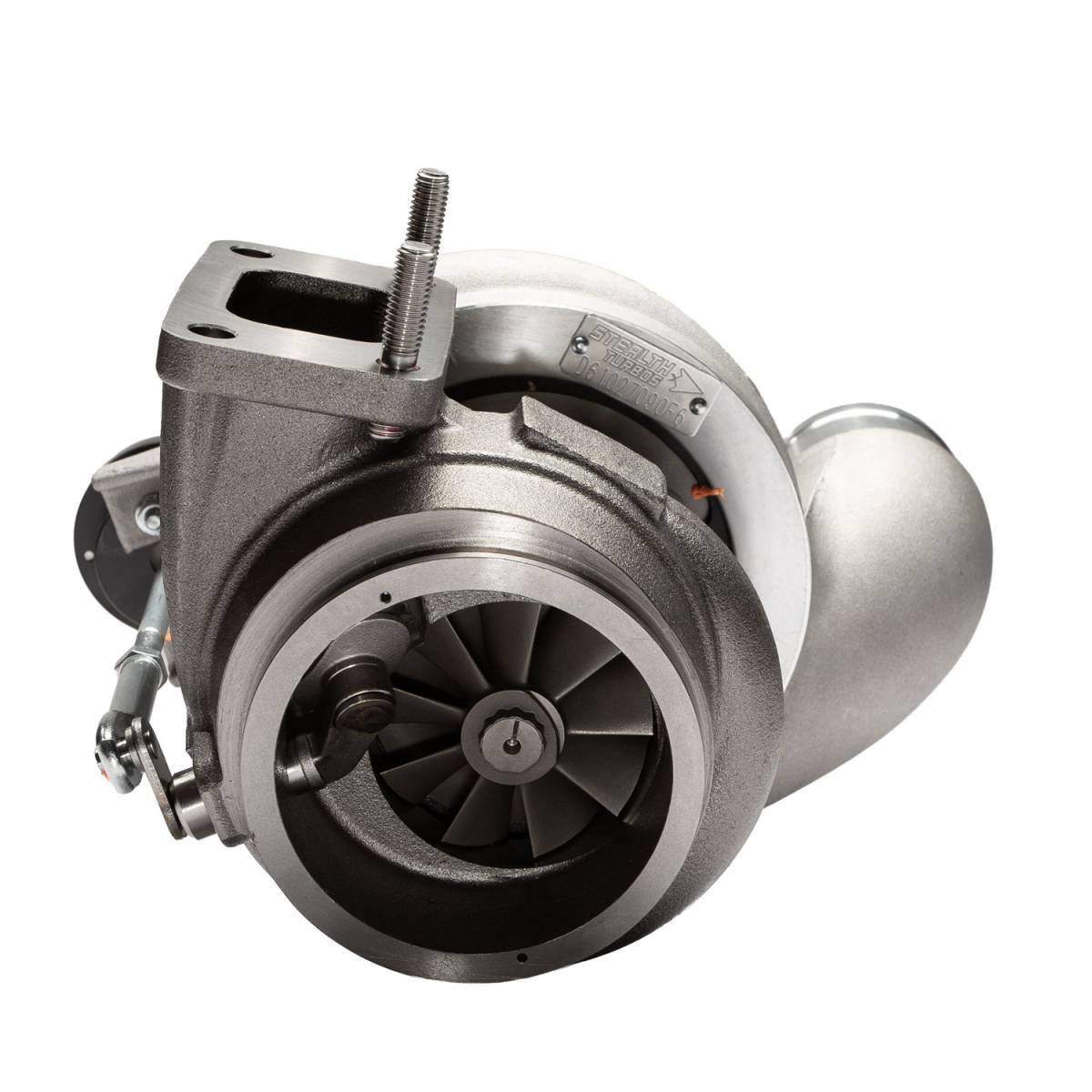

2003-2007 5.9L Cummins Stealth Mach 3 70mm Drop in Turbo

(0) Reviews: Write first review
CPS200425
- Proven to support up to 950 RWHP!
- Class-leading drive to boost pressure ratios
- Superior exhaust flow to other drop-in chargers

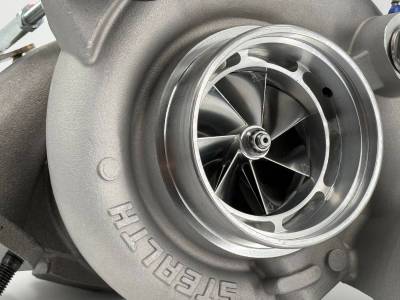

- 70mm - 7+7 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel
- Largest turbine in a 5.9L Cummins turbo
- 72.2mm - 9 Blade 713C - Nickel Alloy Turbine Wheel
- Loud turbo whistle from 9-blade turbine
- Provides maximum boost out of a drop-in charger
- Spools better than comparable S400 turbos
- Improved drive/boost pressure ratios
- 360-degree thrust bearing for increase durability
- Reduces top-end EGTs
- Minimized rotating assembly weight
- Signature Stealth turbo whistle
- Brand New Parts - No core charges
- 1 year unlimited mile standard warranty
- Fits 2003 to 2007 5.9L 3rd-Gen Cummins (Replaces HE351cw/HE341cw Turbos)"
- Supersedes DM1582050800000
Availability: Raw in stock and ships in 3-5 business days. 10-15 business day lead time for powder and ceramic coat options.
Was: $1,950.00
Sale: $1,755.00
Save: 10%
Save: $195.00

Customize Your Item

- Model Year -
 * required
- Powder Coating -
 * required
- 91-18 Turbo Oil Feed Line Kit -
 * required
- 03-07 5.9L Turbo Oil Drain Kit -
 * required
- Exhaust Manifold -
 * required
- Stainless Exhaust Manifold Stud -
 * required
- VGT Exhaust Housing Finish -
 * required
Qty:

Description

Built to dominate, and tested to prove it — this is the ultimate 3rd Gen drop-in turbo upgrade. Engineered for serious competition, it features advanced modifications like our custom Super Flow exhaust housing, a massive 72mm turbine wheel, a 70mm billet extended-tip compressor wheel, and a precision-machined billet wastegate actuator. This turbo is the pinnacle of 3rd Gen performance — and it will absolutely blow you away.

This turbo is a great fit if you...

  • Want the most powerful drop-in turbo for your Cummins
  • Want to make big power and look factory/stock
  • Are considering upgrading to a S400 style turbo
  • Want to win your sled pulling class
  • Have major fuel mods done to your 5.9L Cummins
  • Want to make up to 950HP out of your 5.9L Cummins

KEY FEATURES

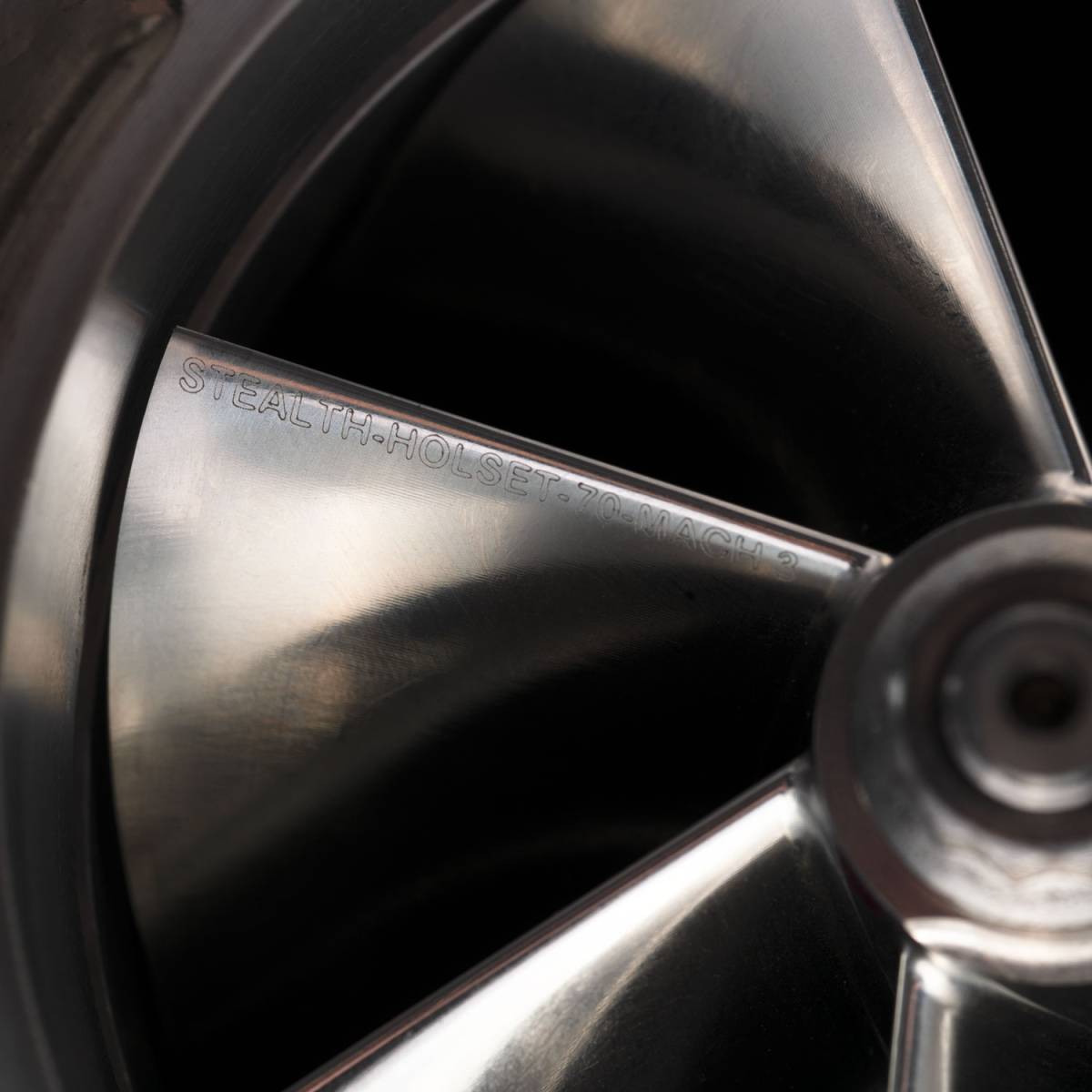

  • 70mm - 7+7 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel
  • Recessed super back comp wheel design for weight reduction

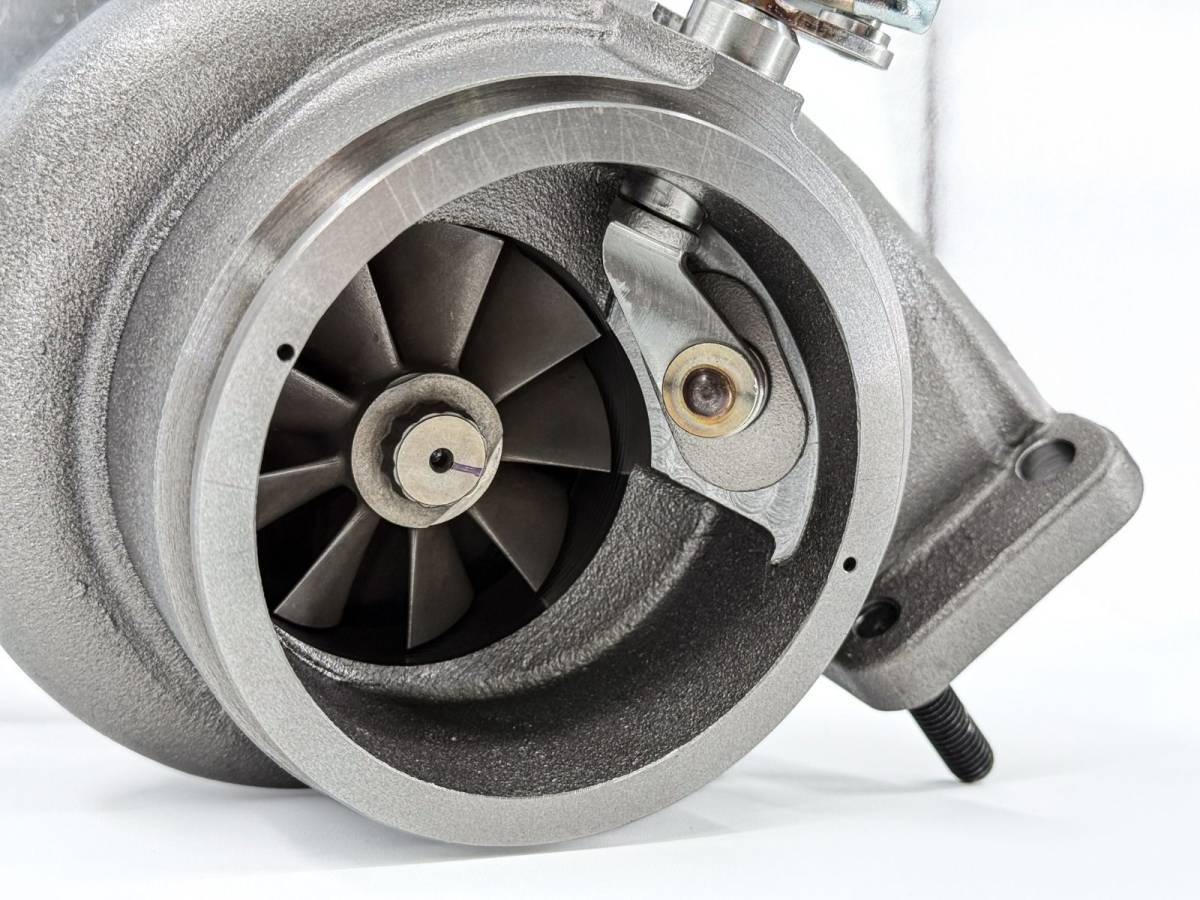

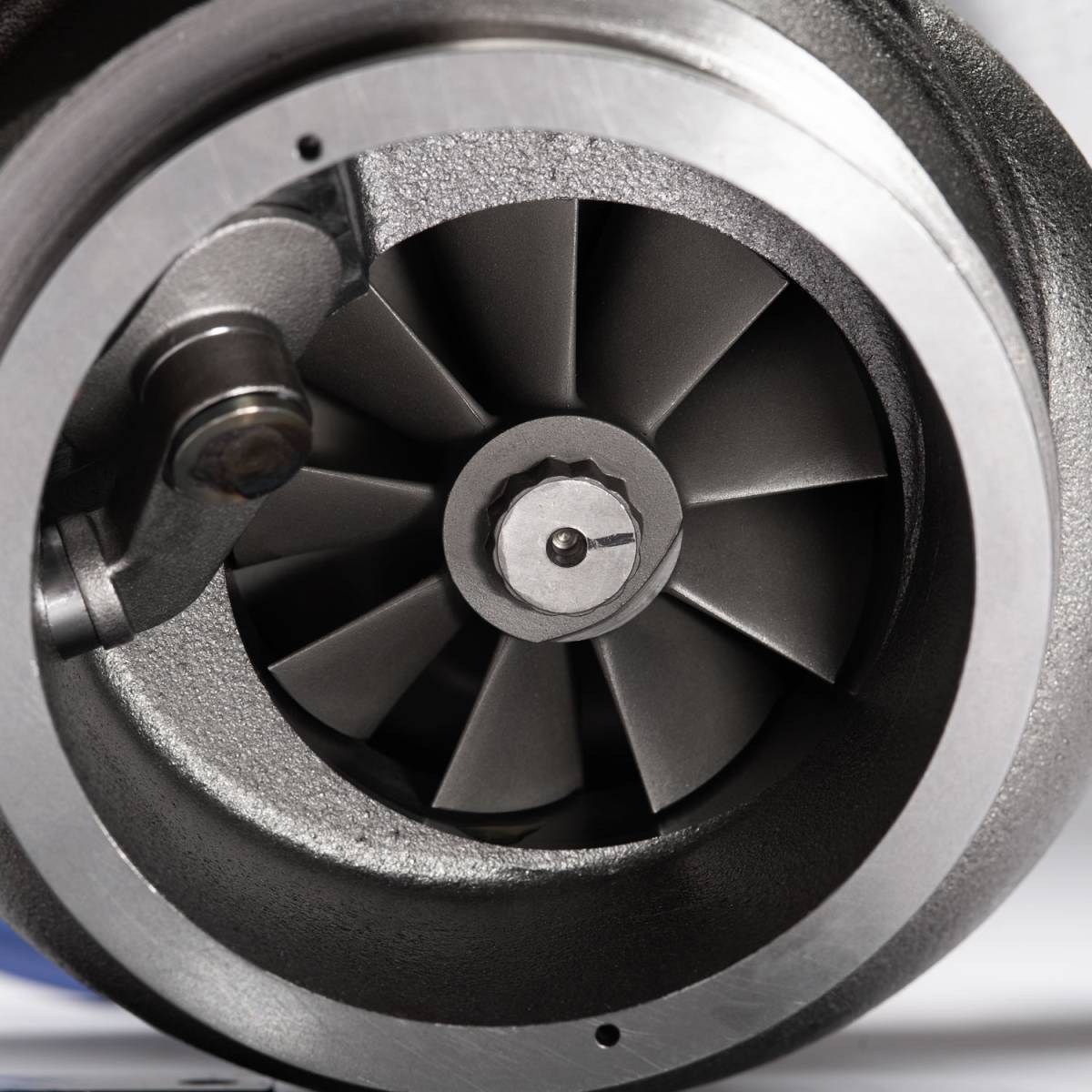

  • 72.2mm - 9 Blade 713C - Nickel Alloy Turbine Wheel
  • Thicker turbine blades for added heat resistance
  • Added turbine back wall for increased oil seal heat protection
  • Thicker turbine heat shield

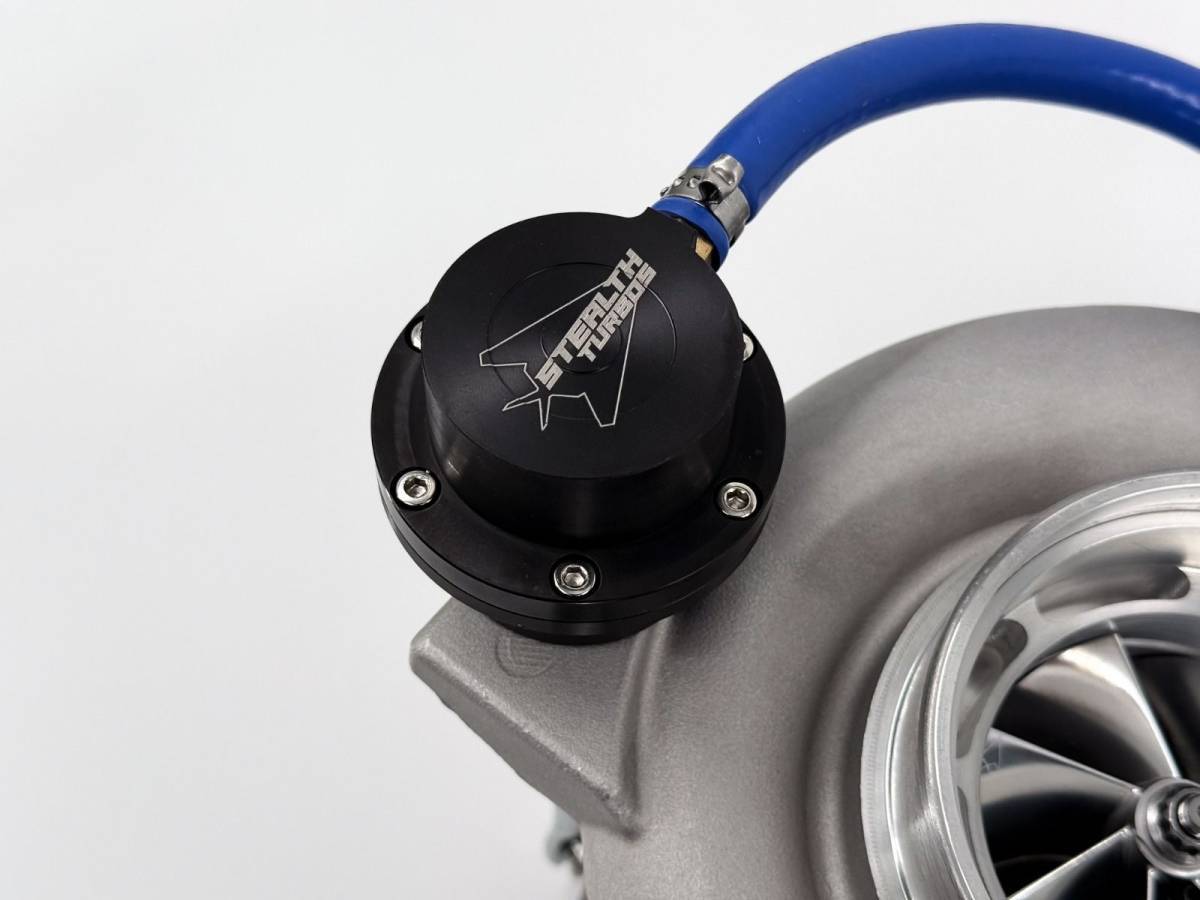

  • Billet Stealth 60psi waste-gate canister (Tunable)

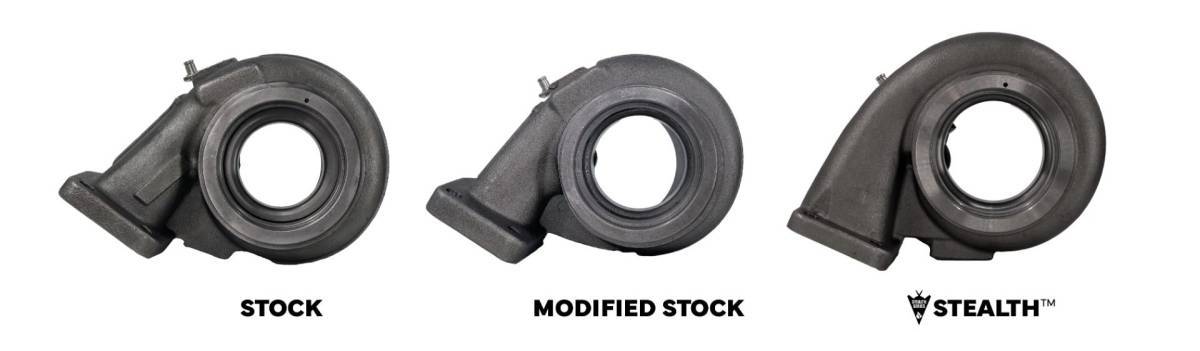

  • Custom high flow exhaust housing with A/R increased 10% over stock
  • Wastegate port shape redesigned & increased 16% in size
  • Custom billet anti-surge compressor cover ring
  • Capable of making up to 60psi of boost
  • Grooved journal bearings for better heat resistance and lubrication

Supersedes DM1582050800000

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 27.0 lbs.
  • W14.0000” x H14.0000” x L14.0000”
  • This item ships in its own box.
