S476 SXE FMW T6 1.32 AR (76mm/96mm/1.32 A/R T6)

SKU: 14969880029

- S400SX-E 72mm Compressor Wheel with 110mm Turbine
- 360 degree thrust bearing system
- V-Band Compressor Outlet Connection

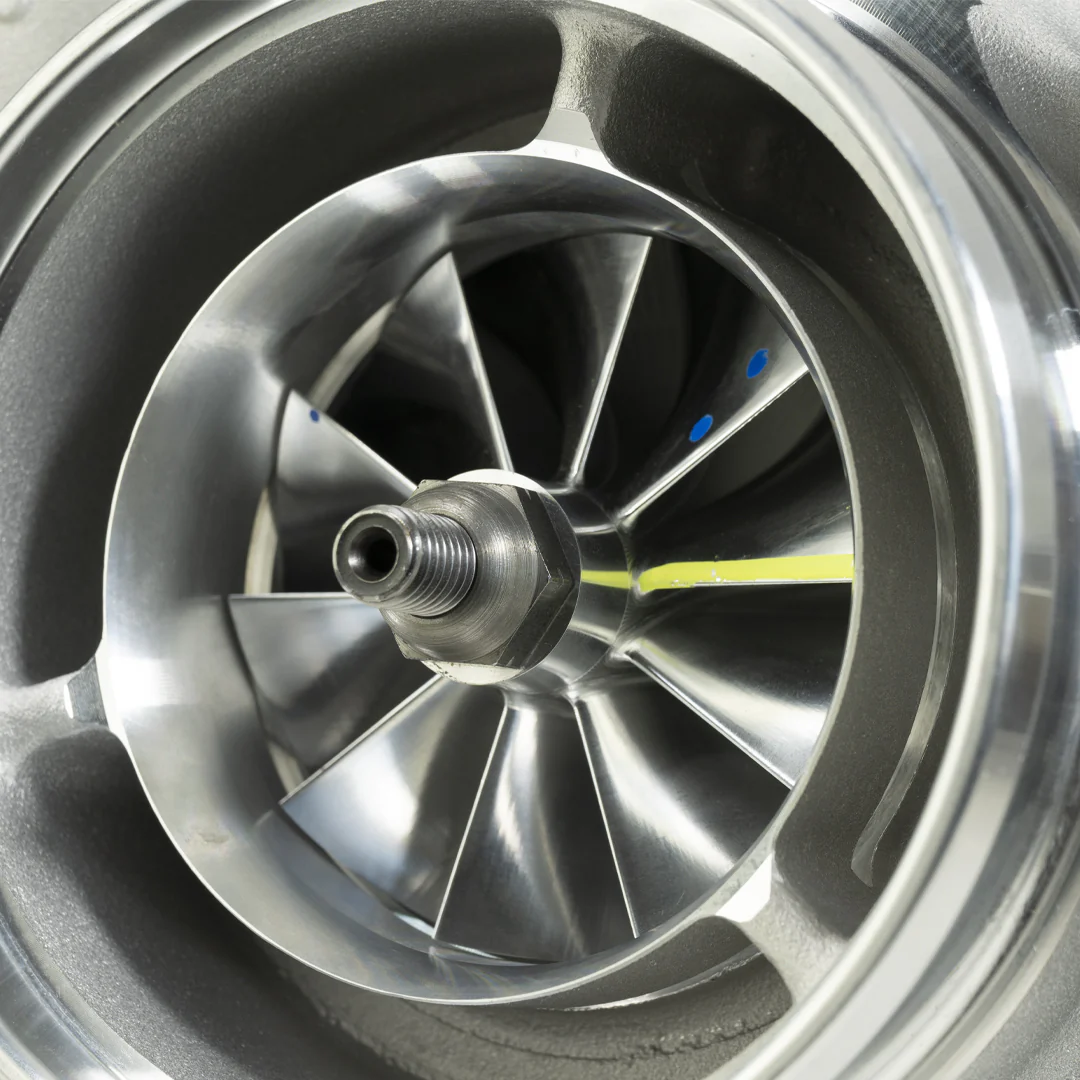

- 10 Blade Forged Milled (FMW) Compressor Wheel
- Extended Tip Technology Compressor Wheel
- Comp. Wheel Inducer Dia. (mm) 76
- Comp. Wheel Outer Dia. (mm) 100.00
- Twin Scroll Turbine Housing
- Adjustable compressor and turbine housing orientation
- Standard turbine inlet and outlet connections
- Compressor cover recirculation grooves

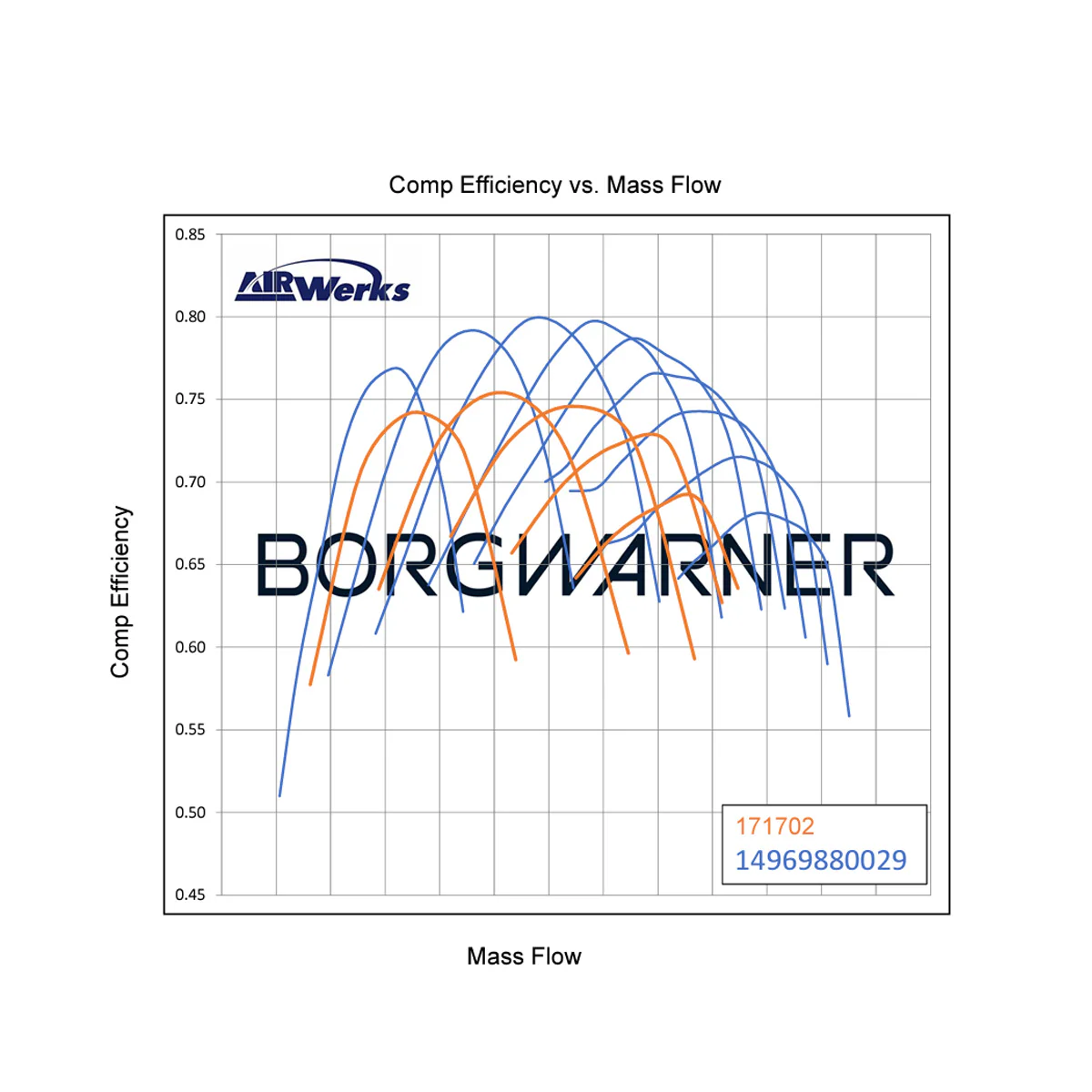

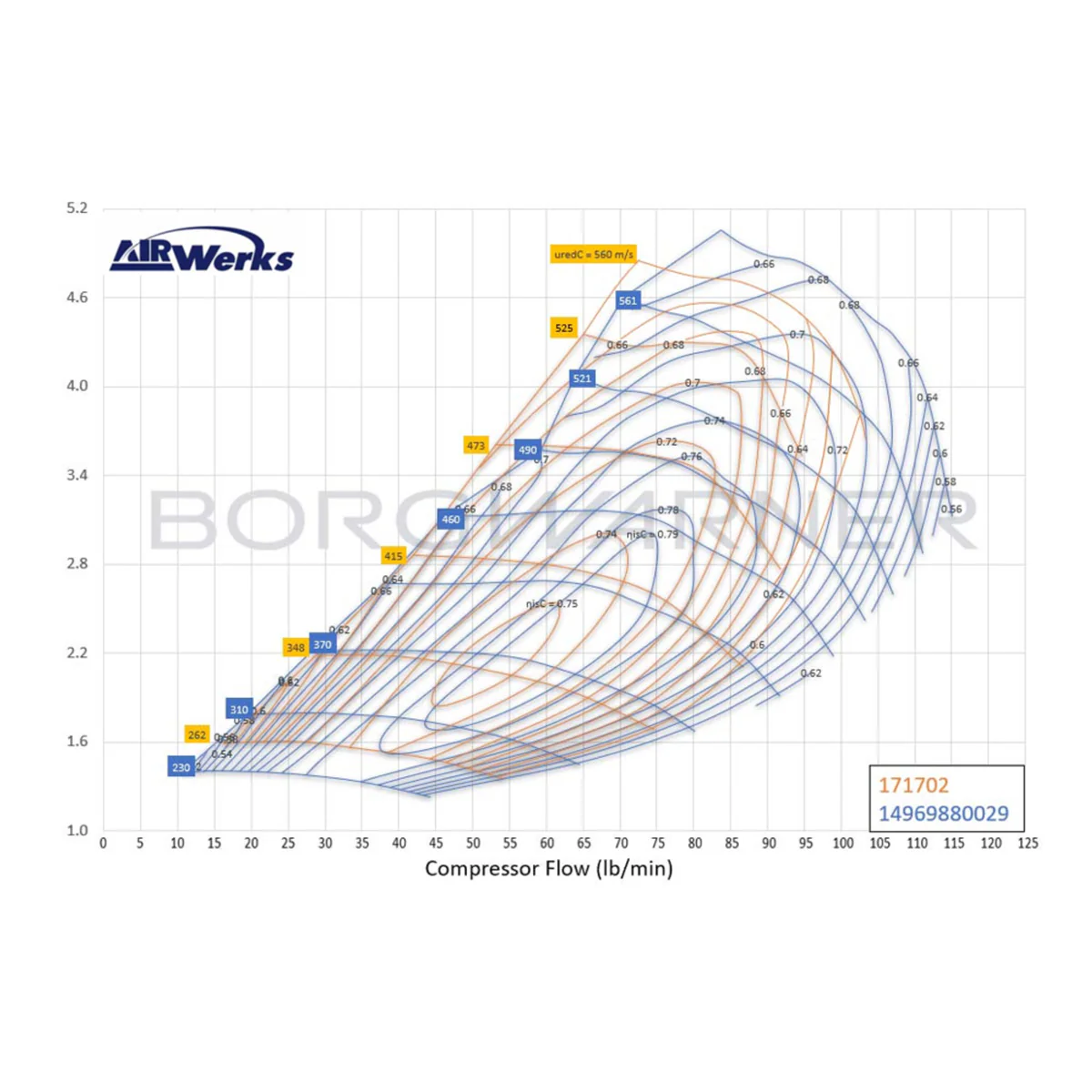

- Substantial increase in compressor flow and efficiency vs. the standard SX version (171702)
- Rated for 550-1200 HP

Pricing: $1,319.90

Customize Your Item

Powder Coating

- Powder Coating -

* required

V-Band O-Ring

- V-Band O-Ring -

* required

S400 Outlet V-Band Mating Flange

- S400 Outlet V-Band Mating Flange -

* required

V-Band Clamp

- V-Band Clamp -

* required

T6 Turbo Heat Blanket

- T6 Turbo Heat Blanket -

* required

T6 Exhaust Housing Finish

- T6 Exhaust Housing Finish -

* required

Qty:

Description
Details
Shipping
Reviews

Description

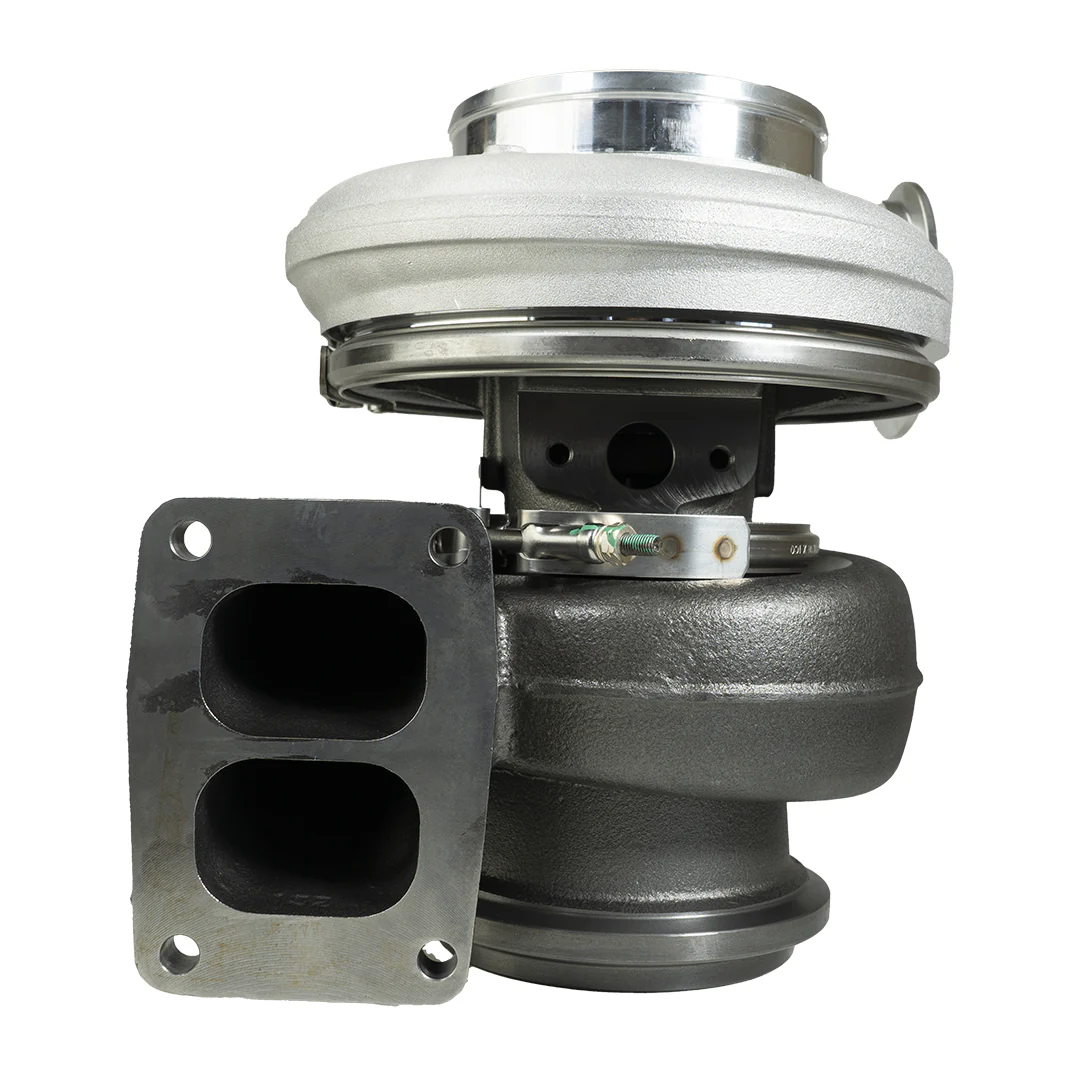

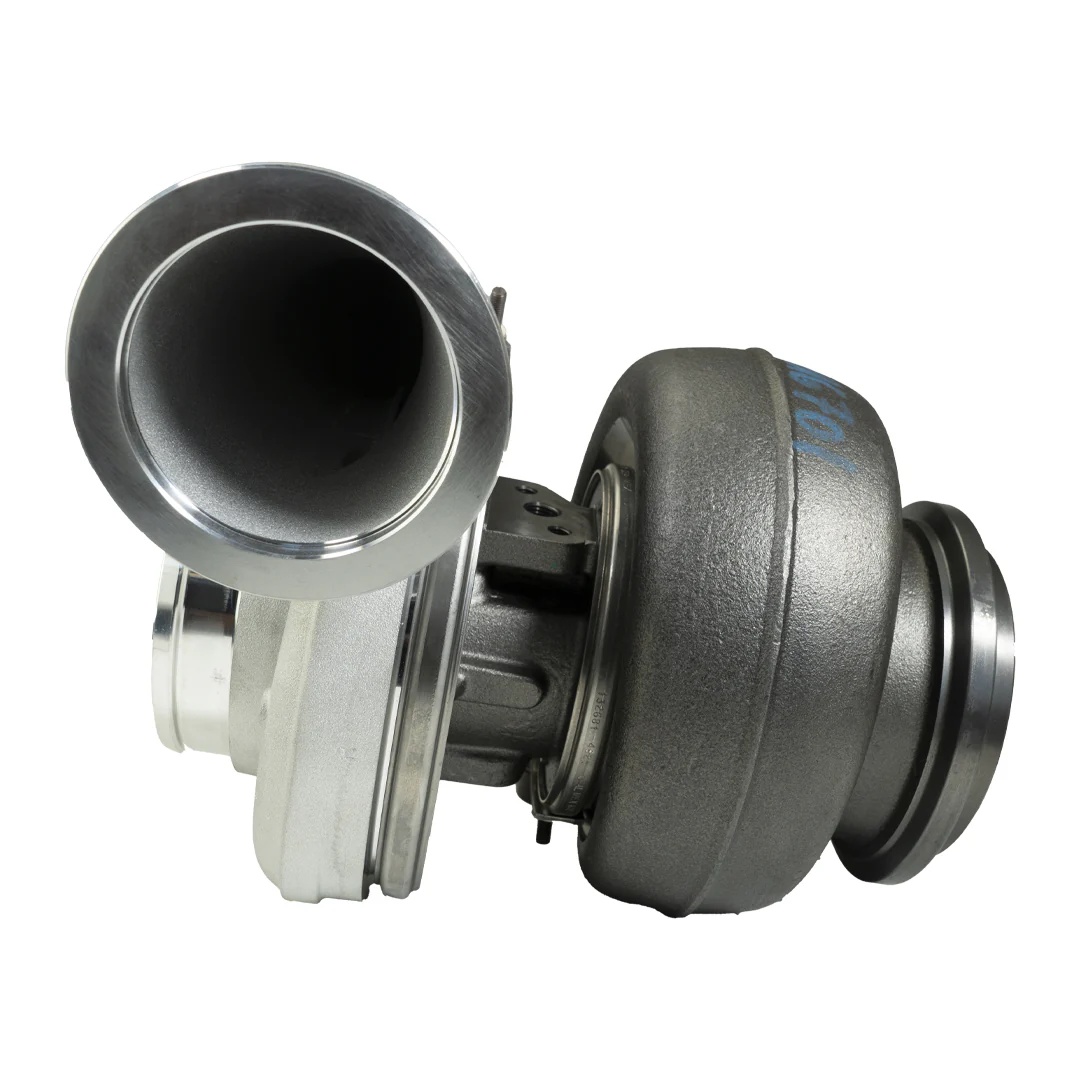

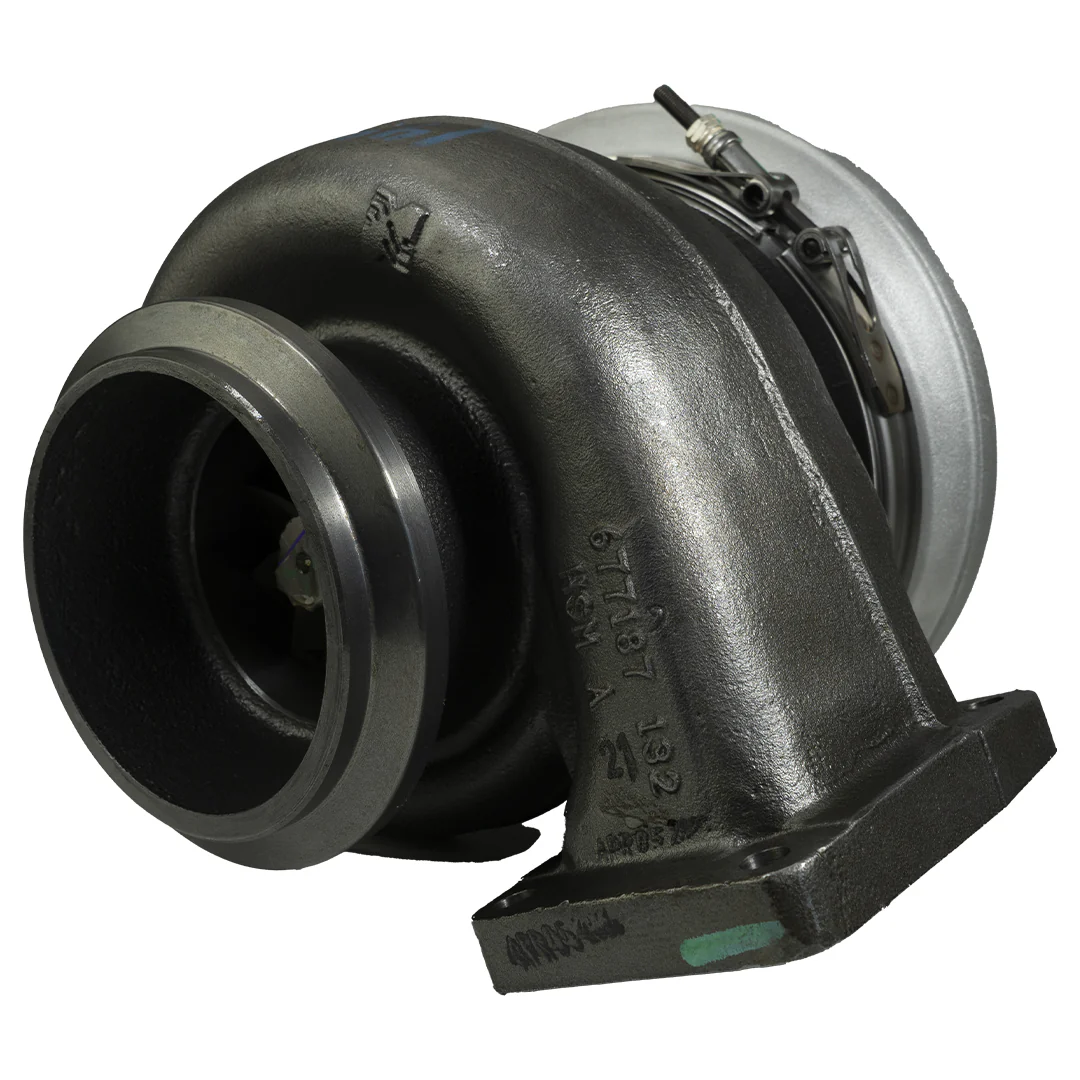

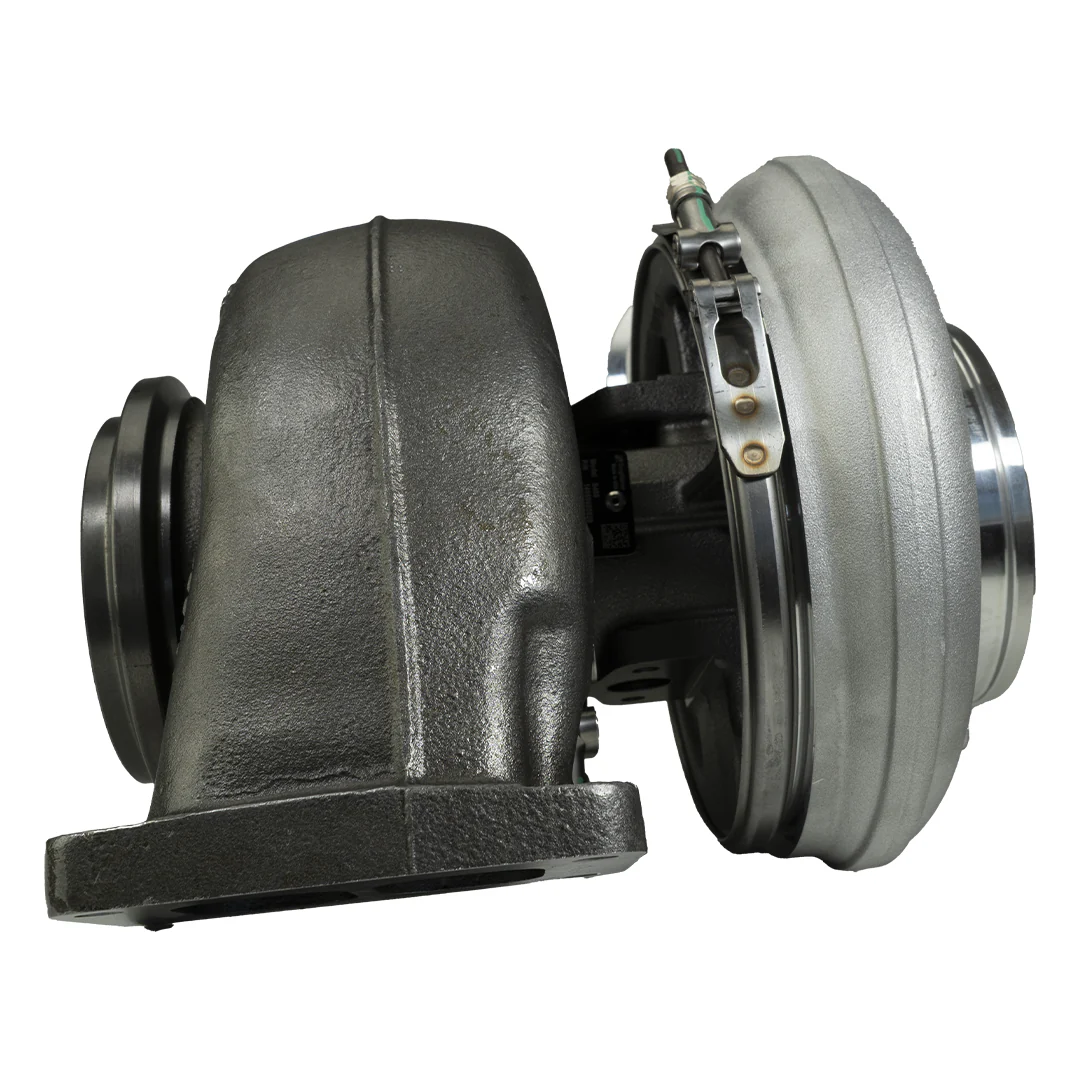

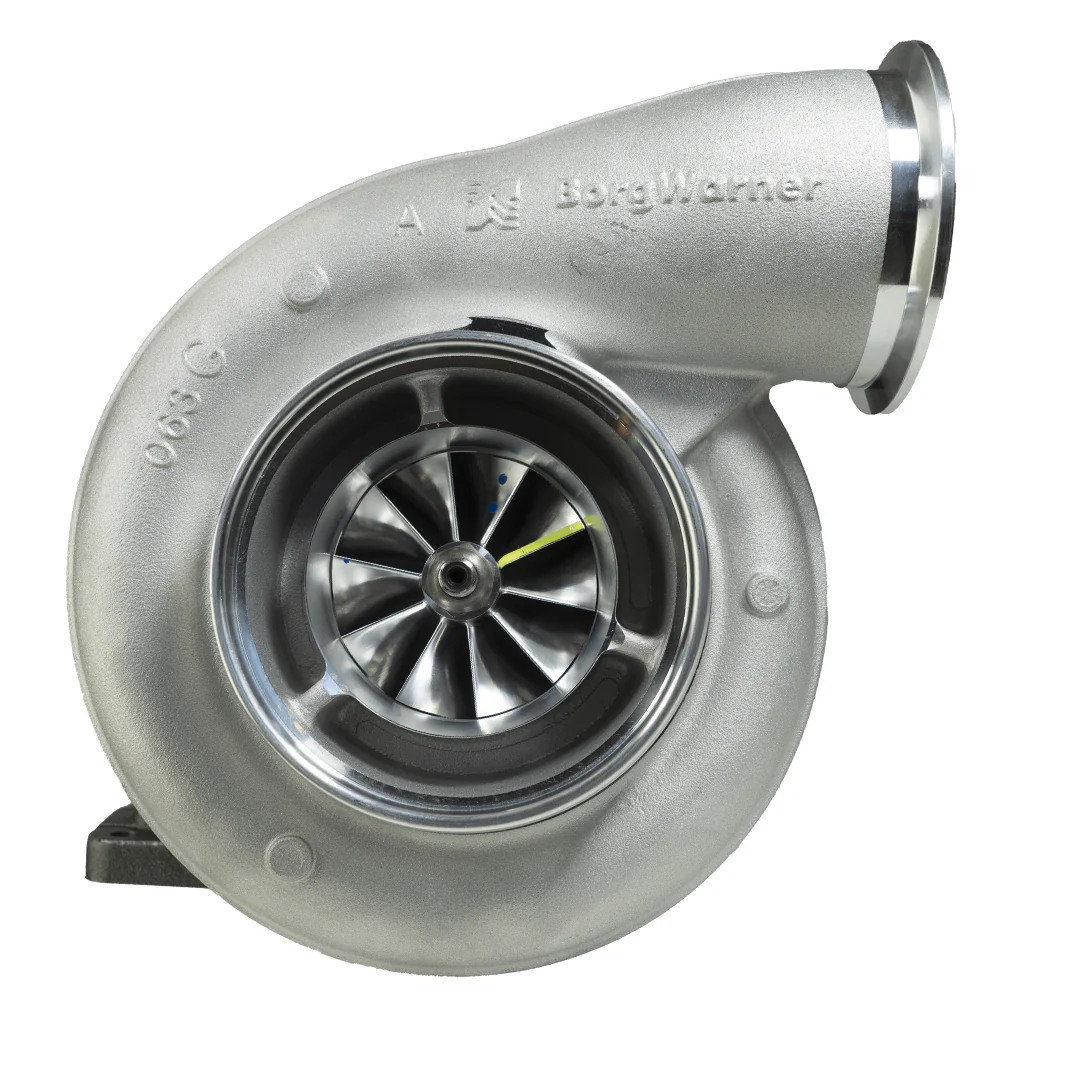

Borg Warner S476 SXE Turbo with 10 Blade Billet Wheel, 96/88mm Turbine, T6 1.32 Housing. SXE Race Cover with 5.5" Compressor Inlet.

The BorgWarner AirWerks® S476SX-E turbocharger (76/96/1.32 A/R T6) is a top-tier choice for performance enthusiasts. This advanced model is part of their "E" series and includes significant advantages over its predecessor (171702 - S475SX4 (75/96/1.32 A/R T6) like a Forged Milled Compressor Wheel (FMW), an upgraded 360-degree thrust bearing system, and a notable increase in compressor flow. These improvements provide a four-point boost in compressor efficiency. This turbocharger features a robust 10-blade FMW compressor, designed to provide superior tensile strength and enhanced durability against failure, surpassing traditional billet and cast compressor wheels in performance. This model is expertly paired with a 1.32 A/R divided turbine inlet out of the box which utilizes a 5.75 marmon connection. Additional turbine housing options available for purchase separately to further customize this turbo for your specific application.
