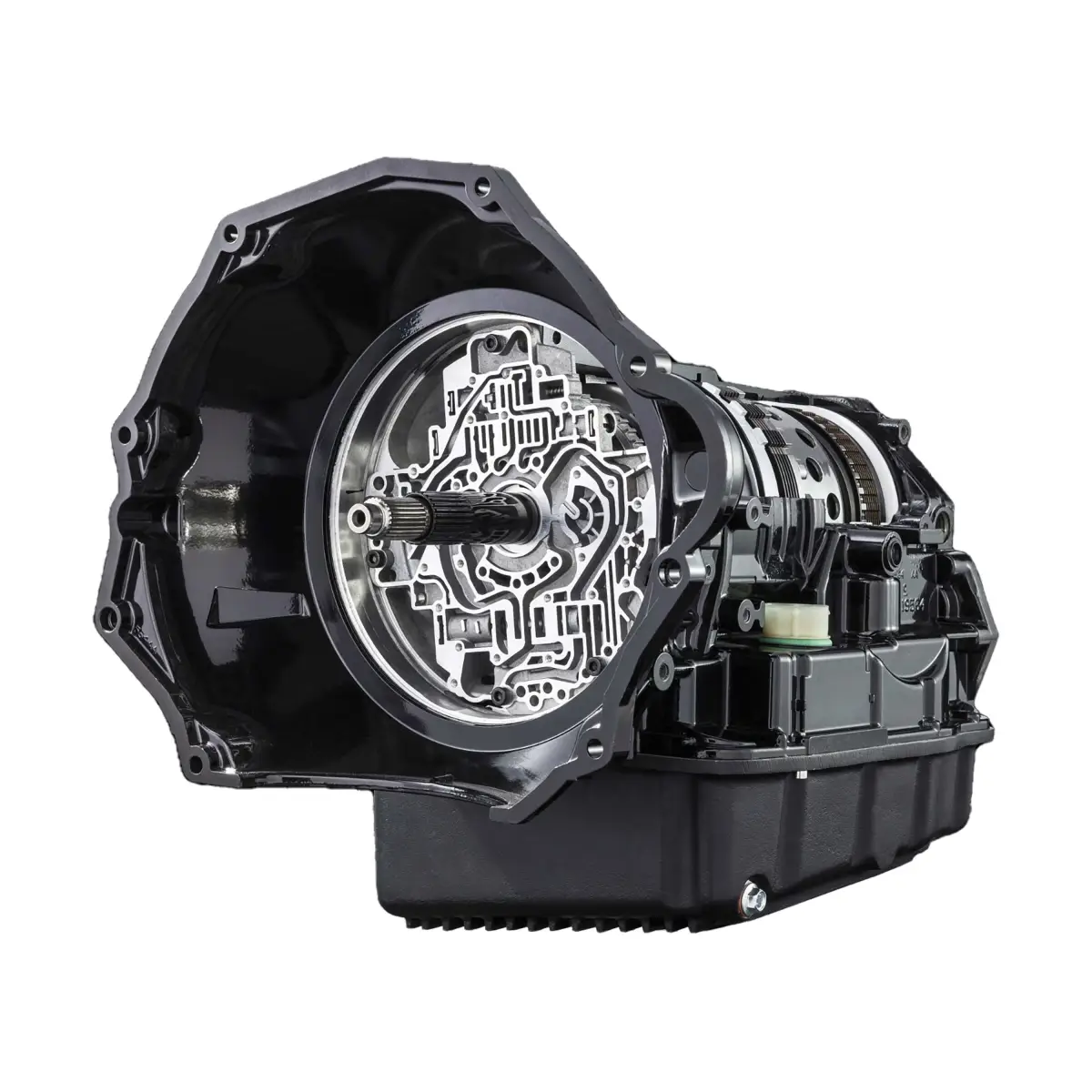

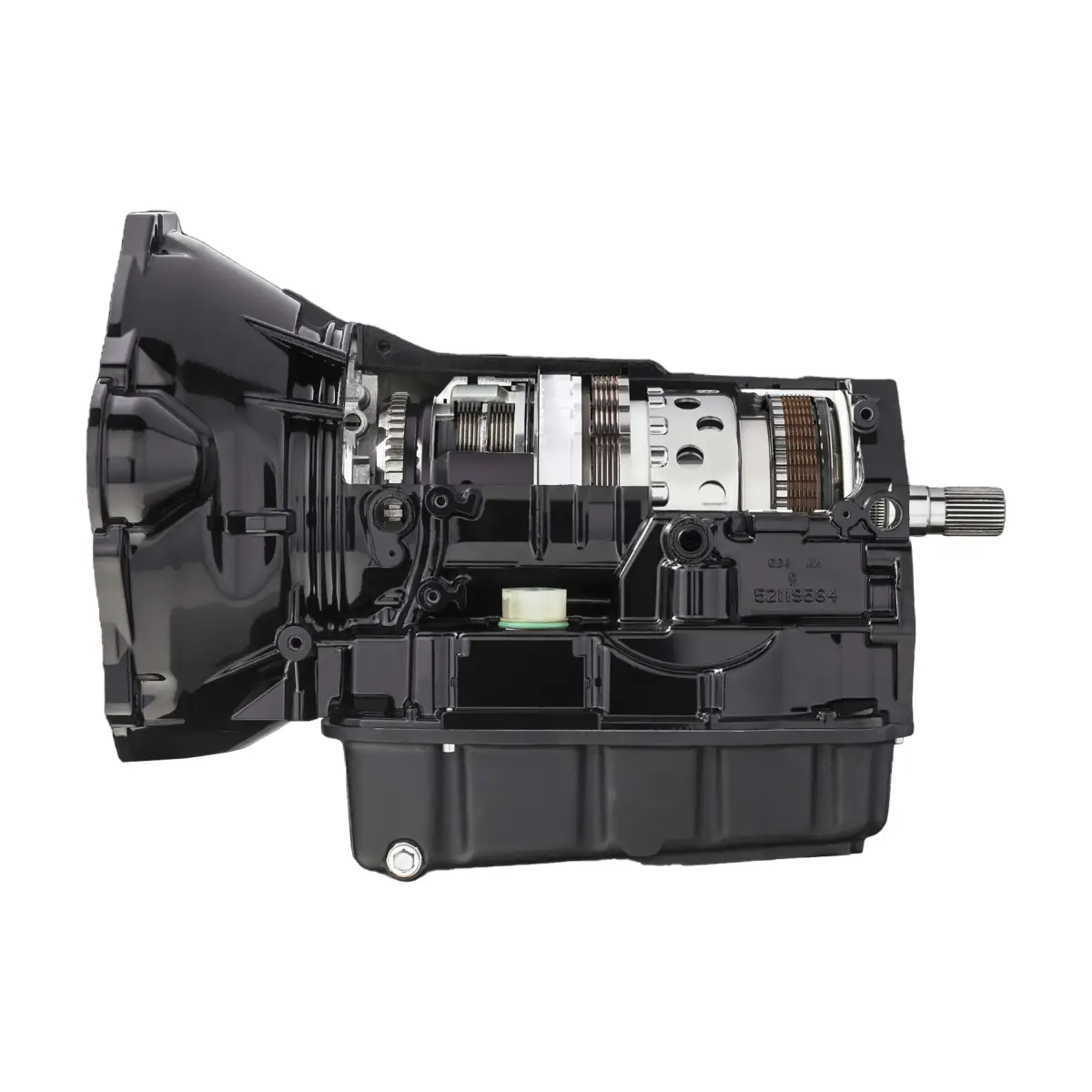

Dodge Ram 68RFE Signature Series 850 Transmission

SKU: R68RFE850

This Transmission Features The Following:

- Disassembly Process and Cleaning
- Complete disassembly of the entire transmission, all wearable “soft parts” are discarded.
- Casing and housings are washed in our 190 degree hot wash tank.
- Hard parts are thoroughly inspected and then either discarded or hand washed
- Casing is thoroughly checked for any cracks or damage

These units are built to the most stringent tolerances by one expert technician from beginning to end, and each unit is signed by the technician when finished. This unit is rated at 850HP and has undergone over a year of rigorous R&D and performance testing. We don’t just say we have pride in our transmission, we literally put our name on it. *Trucks with tires that are larger than 35″ will not be covered under warranty unless proof of a differential gear change is provided*

Pricing: $12,995.00

Customize Your Item

Core Charge

- Core Charge -

* required

Drivetrain

- Drivetrain -

* required

Transmission Shipping

- Transmission Shipping -

* required

Stall Speed

- Stall Speed -

* required

Truck Year

- Truck Year -

* required

Qty:

Description
Details
Shipping
Reviews

Description

Upgraded Internal Components

RevMax Patented Direct Oiling Billet Input Shaft
Billet Stage 5 Triple Disc Torque Converter w\ Custom stator assembly
Revmax Signature 850 Anodized Outer Billet Input Clutch Housing
Revmax billet STEEL inner input clutch housing
Billet OD Pressure Plate
Billet UD Pressure Plate
Billet Pro-Mod Low Reverse Roller Clutch/Sprag Assembly
Revmax PATENT PENDING Billet 300M Overdrive/Intermediate shaft
Patent pending no drill Accumulator Plate
Billet Triple Seal Accumulator Pistons
Transgo Steel SSV Valve and End Plug
Upgraded Smooth-Lock TCC Switch Valve
RevMax leak free bonded separator plate that is 2.5x thicker than OEM.
Revmax Billet Towing HD Valve Body
Billet ZeroFlex 6061 Billet Valve Body Channel Plate
Custom calibrated Revmax valve body, fully tested on our computerized valve body dyno
4 clutch 2c with hp clutches
Billet 2nd clutch piston assembly4 clutch 4c with hp clutchesCustom 4th clutch pressure plateHigh Performance Low/Reverse ClutchesBillet RevMax Center Support and 4th Clutch Housing w 5 ClutchesRevmax High Pressure PumpBrand New Internal Solenoid PackExtra deep 4.5-quart additional cast aluminum pan with drain plugBillet Filter Screw2-year unlimited mileage warranty.
