S475 Cast Wheel T6 1.32 AR (75mm/96mm/1.32 A/R T6)

(0) Reviews: Write first review
171702
- S400SX4 75mm Compressor Wheel with 88mm Turbine
- Twin hydrodynamic journal bearings
- Extended tip technology compressor wheel
- Twin scroll turbine housing
- Adjustable compressor and turbine housing orientation
- Compressor cover recirculation grooves
- V-band Compressor Outlet discharge
- Cast compressor wheel

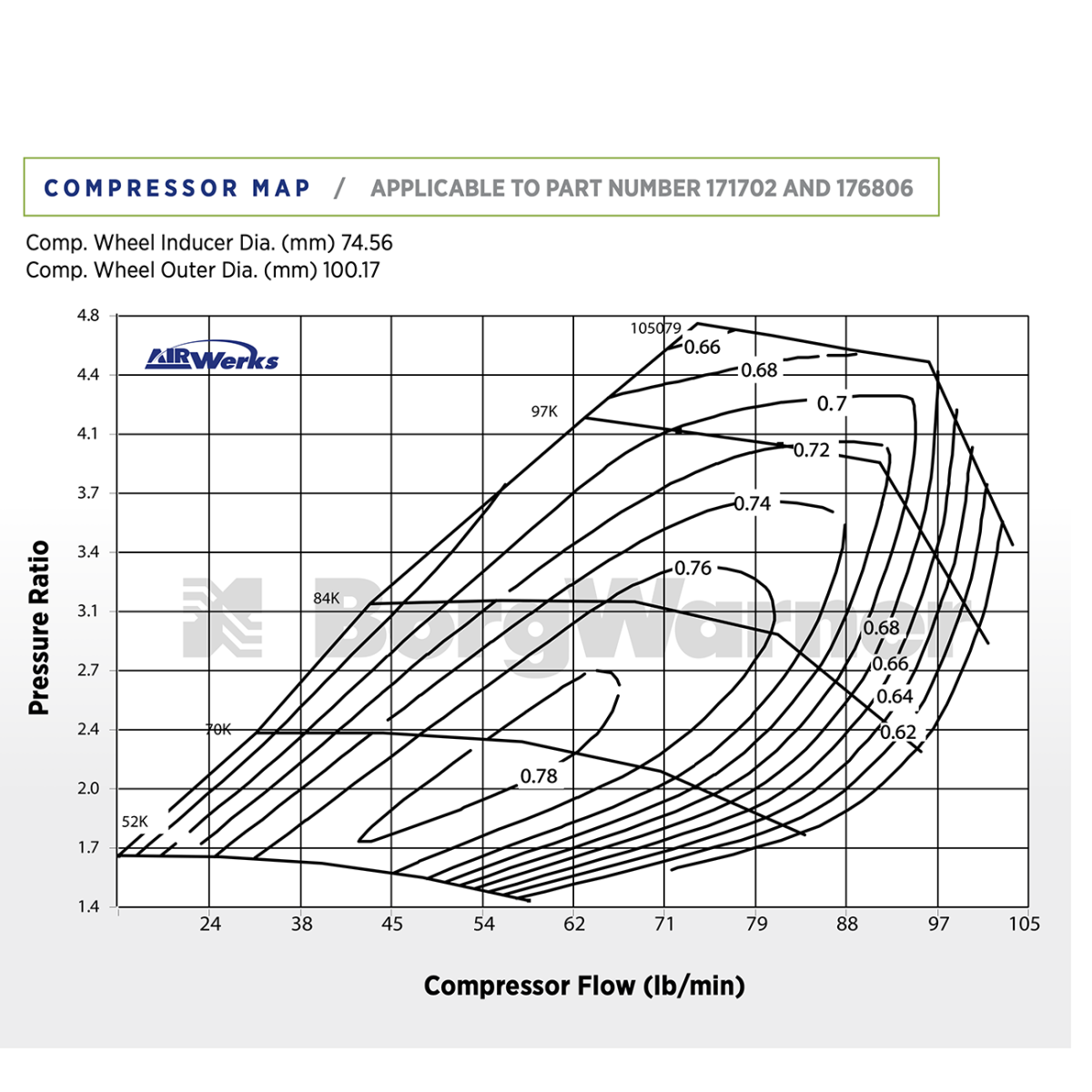

- Comp. Wheel Inducer Dia. (mm) 74.56
- Comp. Wheel Outer Dia. (mm) 100.17
- Rated for 500-1050 HP
Availability: Raw in stock and ships in 3-5 business days. 10-15 business day lead time on powder coating.
Pricing: $1,072.77

Customize Your Item

- Powder Coating -
 * required
- V-Band O-Ring -
 * required
- S400 Outlet V-Band Mating Flange -
 * required
- V-Band Clamp -
 * required
- T6 Turbo Heat Blanket -
 * required
- T6 Exhaust Housing Finish -
 * required
Qty:

Description

Borg Warner S475 Cast Wheel (75mm compressor wheel) Turbo with 96/88 Turbine and T6 1.32 AR Exhaust Housing.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 50.0 lbs.
  • W15.0000” x H16.0000” x L15.0000”
  • This item ships in its own box.
